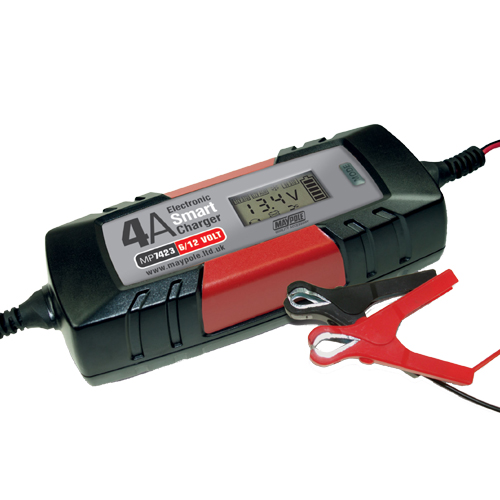

Maypole 4A 6V 12V Smart Battery Charger Caravan Motorhome Leisure

Description

Genuine Maypole · Part no. 7423

Fully automatic dual voltage smart charger recommended for a wide range of vehicles up to 2.5L (2500cc) Suitable for use with 6V & 12V lead-acid and 12V AGM batteries of 1.2Ah to 120Ah Input : 230V AC 50Hz 0.6A Outputs: 6V: 4A DC 12V:4A DC Automatic detection of battery voltage & condition Automatic charging current selection 4 charging modes : 12V Standard, AGM & Winter; 6V Standard 5 stage charging cycle automatically detects the battery voltage and condition before re-conditioning, charging and maintaining the battery Memory function automatically re-starts charging if interrupted LCD display indicators showing: reverse polarity, faulty connection, faulty battery, battery level, 12V winter charge Interchangeable 1.5m battery clip & ring terminal connector leads included Overload, reverse-polarity and short circuit protection Manufactured to European electrical safety standards Suitable for low maintenance and maintenance-free batteries IP65 Easy and safe to use Compact and robust design High frequency charger – does not have a transformer Not recommended for use with GEL batteries Box quantity – 12 Suitable for: motorbikes, cars, vans, caravans and motorhomes FAQ 1. Do I connect both the round clips to the battery posts or does the “negative” clip have to connect to somewhere on the chassis? When using the ring terminal connecting lead, the negative lead can be directly connected to the battery post. When fitting this lead to the battery, it should be disconnected from the battery charger and the protective cap should be fitted to the in-line terminals. When connecting to this lead to the charger, the charger should not be connected to the mains. This is to avoid causing sparks near to the battery when making the connection. 2. How long does it take to recharge a flat battery? Please note: MP7423 needs a 12V battery to be at a minimum of 7.5V before it will attempt to charge. An indication of the time required to recharge a flat battery can be calculated by the following formula: *Battery capacity in Ah x 1.25 / Charger rated output* The time required by any device to fully charge a battery can be effected by environmental conditions and battery condition. Maintenance charging Will sustain a fully charged battery in optimum condition whilst minimising the risk of long-term damage to the battery due to either under-charging or over-charging. Video

Key features

• Fully automatic dual voltage smart charger recommended for a wide range of vehicles up to 2.5L (2500cc)
• Suitable for use with 6V & 12V lead-acid and 12V AGM batteries of 1.2Ah to 120Ah
• Input : 230V AC 50Hz 0.6A
• Outputs: 6V: 4A DC 12V:4A DC
• Automatic detection of battery voltage & condition
• Automatic charging current selection
• 4 charging modes : 12V Standard, AGM & Winter; 6V Standard

Specification

Voltage	6V, 12V, 230V, 5V
IP Rating	IP65
Cable / Length	1.5m
Brand	Maypole
Part number	7423
Barcode (EAN)	5013008074237
Condition	Brand New

Fitment & use

12V and 10-30V multi-volt lamps suit cars, trailers, trucks and agricultural vehicles. LED units draw less current and last longer than bulb lamps. Check the functions (stop/tail/indicator/fog/reverse) and the fitting before ordering.

Ideal for

Perfect for trailers and caravans; trucks, lorries and agricultural use; replacing a damaged lamp. Suitable for use across trailers, caravans, cars, vans and 4x4s.

Also known as

Commonly searched for as Trailer Lamp, Rear Combination Lamp, LED Marker.

Please note

High frequency charger – does not have a transformer Not recommended for use with GEL batteries

Genuine Maypole product.
Brand new and supplied ready to fit.
